Description
Device Specs
Frequency Range: 0.1 – 999.9 Hz programmable
Wave Form: Square pulses
Duty Cycle: 50%
Magnetic Field Strength: 1 Gauss to 90 Gauss
Each iMagPad creates 6.2 mT/A magnetic field
Output Polarity: Programmable alternating, positive or negative
PEMF Output: F1 + F2 to CH1, CH2, or both CH1 & CH2. The output is user-configured.
PEMF Converter: Connect your MEND device to the PEMF device. Allows you to run 2 protocols simultaneously as PEMF.

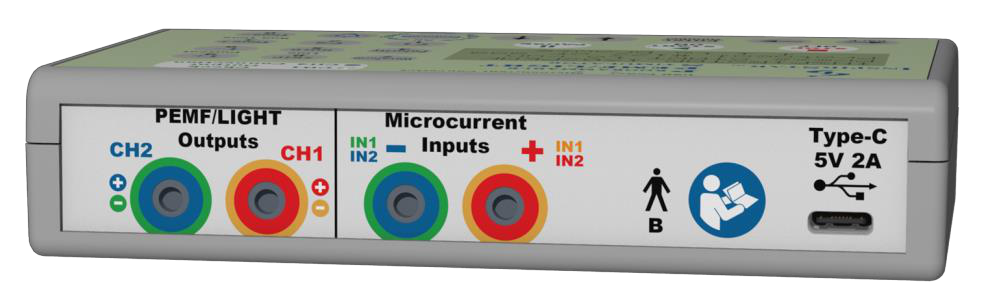

Output Connection: 2.35 mm shielded jacks
Programming Port: USB Type-C
Memory: up to 999 programmable protocols
Power Supply: (2) AA alkaline batteries, power bank or wall adapter
Dimensions: 5.1 x 3.2 x 1.2 inches
Weight: 7.7 oz
Warranty: 1 year
